Core Holding Equipments



bullet

Quick Lock

bullet

Air Chuck

bullet

Air Expanding Shaft

bullet

Mechanical Expanding Shaft

bullet

Ball Type Differential Shaft & Quick Lock



   Quick Lock

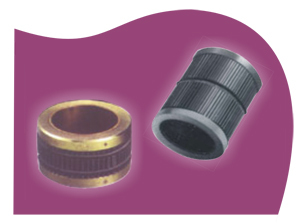

Quick lock is the Quick way to hold and release the core for slitter machine. Quick lock shaft assembly having all the advantages like slippage, accommodating gauge variation, smaller core width etc. Sizes suitable for core 3', 4", & 6". Individual quick locks are available having width of 50mm, 75mm, & 105mm.

Quick Lock


   Air Chuck

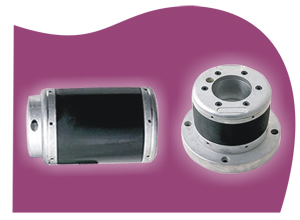

Air chuck are made out of high quality Abrasion resistant and resilient polymeric material. Our Chucks are joint less at gripping surface.


Air Chuck



   Air Expanding Shaft

Air Expanding Shaft

Lug Type Air Expandable shaft
This type of shaft are suitable for both unwinding and winding stages. It can accommodate single core, multi-core of the width more than 150 mm.
Type of pipe and lug materials are decided based on applications like speed. load and core materials and web tensions.

Leaf Type Air Expandable Shaft
This type of shaft can also be used at unwind station but mainly used at rewind stage for advantages like:
Narrow width of core.
At time core-less winding is also possible.

Button Type Air Expandable Shaft
This type of shaft can also be used at unwind station but mainly used at rewind stage for advantages.

   Mechanical Expanding Shaft





Mechanical Expanding Shaft

Lug Type

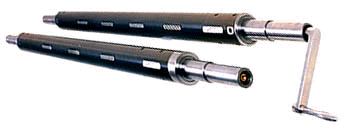

This type of shaft are suitable for both unwinding and winding stages. It can accommodate single core, multi-core of the width more than 150 mm.
Type of pipe and lug materials are decided based on applications like speed. load and core materials and web tensions.

Leaf type
This type of shaft can also be used at unwind station but mainly used at rewind stage for advantages like:
Narrow width of core.
At time core-less winding is also possible.


   Ball Type Differential Shaft & Quick Lock







Ball Type Differential Shaft & Quick Lock

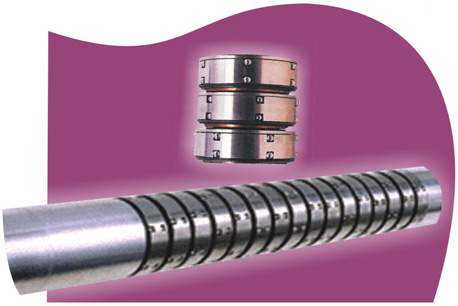

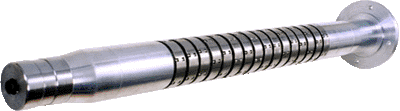

This is latest version of Quick Lock Shaft for slitter machine center winding style.

Benefit of this device.

bullet Minimum core width
bullet

Compensate gauge variation as individual slippage of each locks.

bullet

Reel holding at any place across the shaft

bullet

No distance place is required

bullet

High speed run of machine

  Click For Shaft Data Sheet
